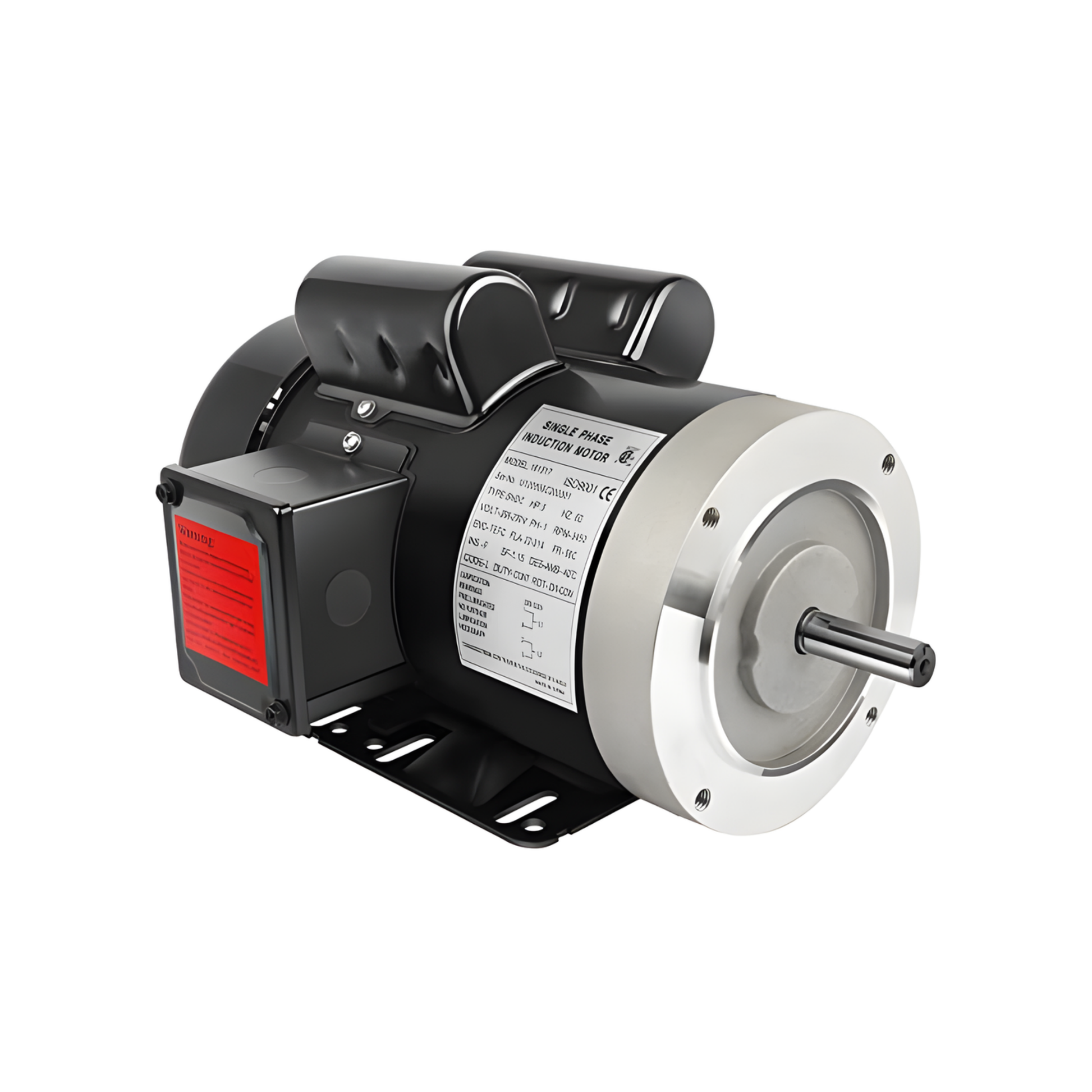

• MOTOR INFORMATION: Ingress Protection (IP): 55, Frequency: 60HZ, Amperage: 22.0-21.0A, Voltage: 208-230V, Service Factor: 1.15, 2 pole. The bolt hole mounting dimensions are 3/8-16. • Totally Enclosed Fan Cooled: Even in harsh environments, a large fan on one end cools the motor during hours of operation to reduce energy costs and operating temperatures. • ELECTRIC MOTOR FRAME TYPE: 56C Frame, Shaft Diameter 5/8", Shaft Length - 1.88". Rolled steel housing, safe and durable, long service life. • MOTOR ROTATION DIRECTION: The rotation of the 3450 rpm single-phase motor is reversible for CW/CCW. • SPECIAL DESIGN: The 5HP electric motor is a general-purpose motor that can be used in mechanical equipment, pumps, fans, reducers, air compressors, pressure washers and other equipment and is CSA certified. • Rolled steel housing, fast heat dissipation, compatible with keyed shaft, long-term use.
