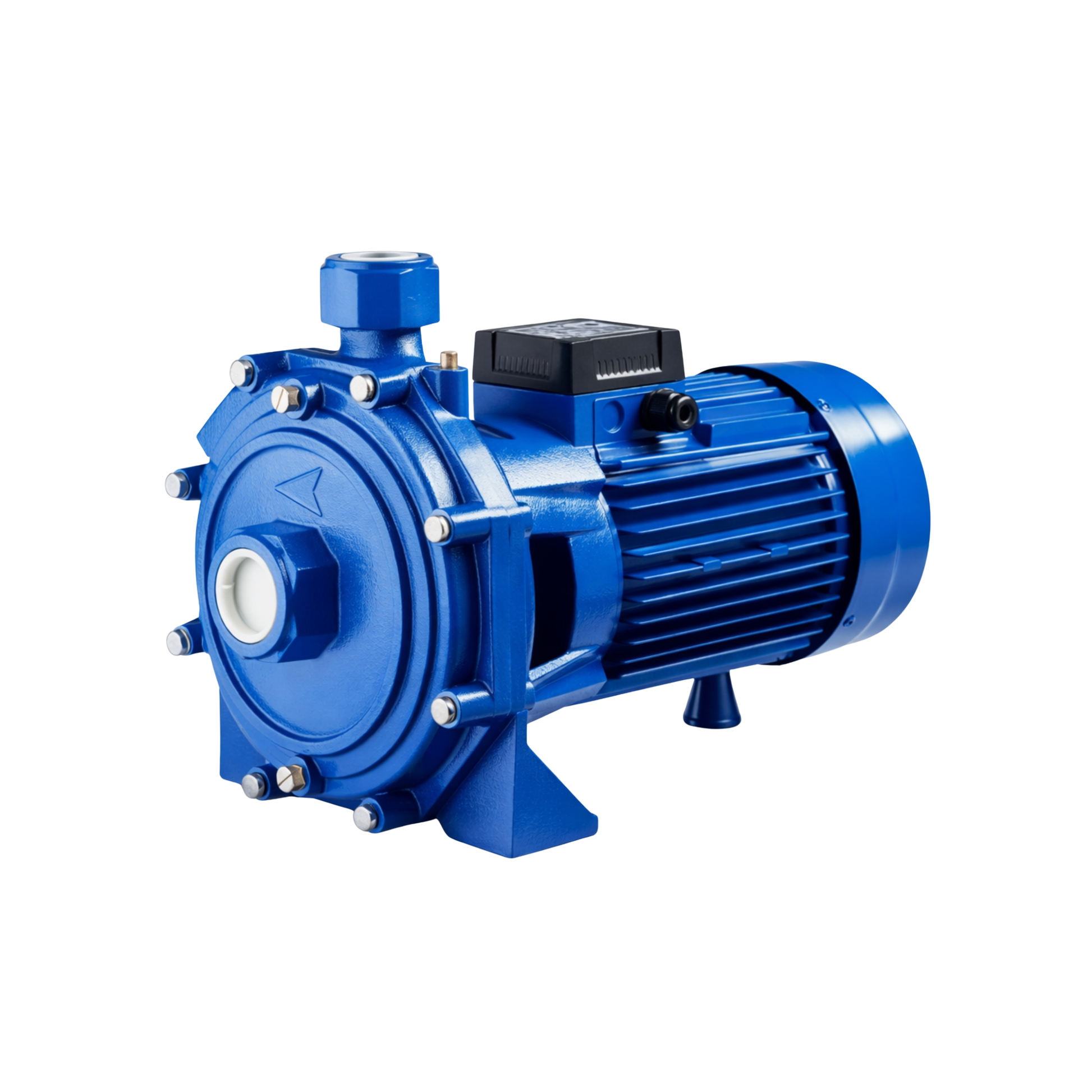

• Two-stage centrifugal pumps are used in applications where high heads are required. They ensure greater reliability and high process performance with lower operating costs than with serial pumping systems. • Domestic, commercial, and industrial use: Irrigation, fire-fighting, and hydro-pneumatic systems. • Voltage 220 Volts - 60 Hz, single-phase. • Copper winding, thermal protector. • Maximum flow 80 l/min. • Power and speed: 1 hp, 3400 rpm. • IP44 protection. • Motor shaft made of AISI 1045 steel. • Maximum suction 6 meters. • Maximum working pressure: 8 Bar • Inlet 1.25” NPT, outlet 1” NPT. • Weight: 15.5 kg.
